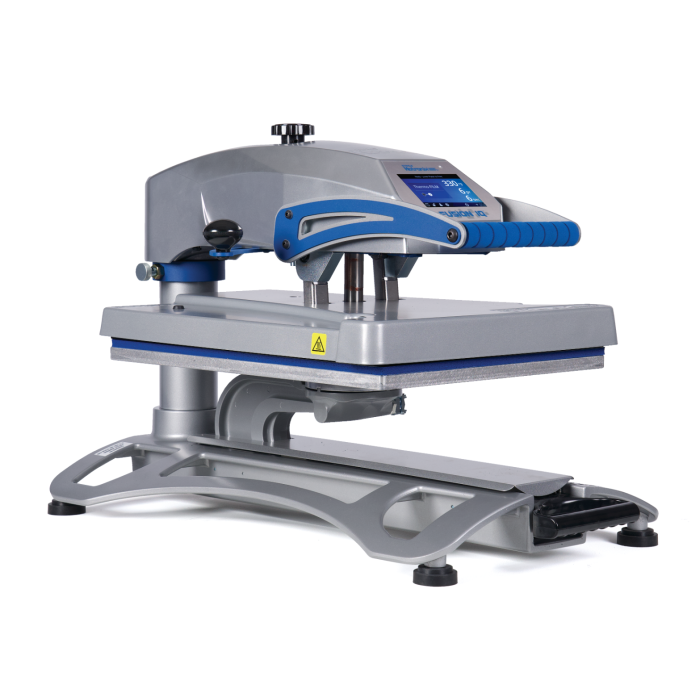

Hotronix Fusion IQ™ Heat Press – 16" × 20"
Achieve Professional-Grade Transfers with Ease
Upgrade your garment printing workflow with the advanced Hotronix Fusion IQ™ Heat Press – 16" × 20". Renowned for its innovative design and precision, this heat press is the ideal choice for decorators focused on Direct-to-Film (DTF), Direct-to-Garment (DTG), Heat Transfer Vinyl (HTV), and Dye Sublimation applications.
Key Features & Benefits:
-
Large 16" × 20" Platen: Ideal for various apparel sizes and large-format transfers, ensuring flawless prints every time.
-
Fusion IQ™ Smart Technology: Cloud-connected digital platform provides real-time data, automated settings, and detailed analytics for improved operational efficiency.
-
Dual Functionality (Swing-Away and Draw): Offers maximum flexibility and accessibility, significantly enhancing safety and productivity.
-
Precision Digital Controls: Accurately set temperature, pressure, and timing parameters to guarantee perfect transfers consistently.
-
Exclusive Threadability™: Allows easy and efficient threading of garments onto the lower platen, reducing prep time and increasing throughput.
-
Interchangeable Platens: Adapt quickly to various project needs with optional interchangeable platens.
Perfect for Advanced Printing Methods:
-
Direct-to-Film (DTF) Transfers
-
Direct-to-Garment (DTG) Applications
-
Heat Transfer Vinyl (HTV)
-
Dye Sublimation
What's Included:
-
Hotronix Fusion IQ™ Heat Press
-
Detailed User Manual
-
Lifetime Technical Support from Hotronix
Elevate Your Printing Business
With industry-leading technology, the Hotronix Fusion IQ™ Heat Press ensures unmatched quality and reliability, designed specifically for high-volume and professional-level printing operations.
Order your Hotronix Fusion IQ™ Heat Press today from dtfstore.com and unlock the next level of printing excellence!
| Platen / Working Area | 16" × 20" (406 mm × 508 mm) swing‑away or pull‑out (drawer) lower platen, fully threadable for front/back/side printing. ¾" (19 mm) thick, non‑stick coated cast‑aluminum upper platen for even heat. |
|---|---|
| Pressure & Capacity | Patented over‑center manual knob with live digital pressure scale (0 – 9) on the IQ™ touchscreen. Up to 1.25" (32 mm) between platens without accessories. |
| Temperature Range | 32°F – 430°F (0°C – 221°C); factory calibration & on‑screen offset available |
| Controls & Interface | 7 " high‑resolution IQ™ touch‑screen: unlimited presets, twin timers, multi‑language UI, Wi‑Fi cloud portal for job/usage analytics, auto on/off, self‑diagnostics. |
| Voltage/Phase/Current | 120 V ~, 15 A, 1800 W (USA/Canada) • 240 V ~, 7.5 A, 1800 W (international) — dedicated circuit recommended |
| Dimensions | 32" (W) × 18" (D) × 20" (H) (81 × 46 × 51 cm) |
| Heat Press Weight | 137 lbs (62 kg) |
| Crate Dimensions | 37" × 25" × 24" (94 × 64 × 61 cm) • 150 lbs (68 kg) |
| Construction | Rigid cast‑aluminum chassis, powder‑coat finish, UL/ULC/CE/RoHS compliant; cast‑in tubular heater for tight ±2°F uniformity |
| Warranty | Heating element – Lifetime • Framework – 5 yrs • Circuit board – 2 yrs • Parts & labor – 1 yr |
